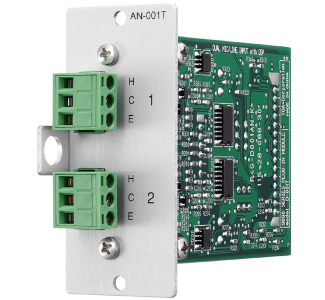

2-channel Ambient Noise Controller Plug-in Module

Print 2-channel Ambient Noise Controller Plug-in Module pageRequest Bulk Pricing CAMCOR ITEM NO. 685910090 | MFG. PART NO. AN-001T
2-channel Ambient Noise Controller Plug-in Module
2-channel Ambient Noise Controller Plug-in Module
Zoom
Close WindowZoom
Alternate View
Quantity

Click for your price

Close Window

Usually ships in 1-3 business days
Free ShippingQualifies for
FREE SHIPPING (?)

This item Qualifies towards Free Shipping!

Items marked with this Freight Saver symbol have FREE shipping (via UPS Ground Service within the Continental US) when $ 79.00 or more of designated Freight Saver items are purchased on the same internet order.

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
2-channel ambient noise controller module automatically adjusts output gain to compensate for changes in ambient noise level. Each input can be assigned to control specific output. Two inputs with ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

2-channel ambient noise controller module automatically adjusts output gain to compensate for changes in ambient noise level. Each input can be assigned to control specific output. Two inputs with +24Vdc phantom power for condenser mics. Maximum two per chassis. Model AN-9001 accessory sensing microphone available.

  • 14 preset gain ratios
  • Maximum two per chassis
  • Two inputs with +24VDC phantom power for condenser mics
  • Accessory sensing microphone available, model AN-9001
  • Each input can be assigned to control a specific output
  • Automatically adjusts output gain to compensate for changes in ambient noise level

Back to Top

Specifications

Specifications

Operating Temperature (Maximum)104.0000 F
Operating Temperature (Maximum)40 C
Operating Temperature (Minimum)-10 C
Operating Temperature (Minimum)14.0000 F
Input Sensitivity-60, -54, -48, -42, -36, -30, -24, -18, -10 dB
Sampling Frequecy48 kHz
Current Draw0.02 Amps
DC Voltage24 Volts

Product Dimensions

Depth3.6024 in
Height3.0709 in
Product Weight0.1808 lbs
Width1.3780 in
