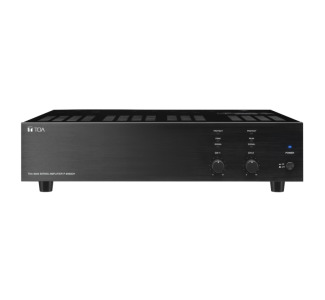

60W 2-channel Power Amplifier

Print 60W 2-channel Power Amplifier pageRequest Bulk Pricing CAMCOR ITEM NO. 685910970 | MFG. PART NO. P-9060DHCU
60W 2-channel Power Amplifier
60W 2-channel Power Amplifier
Zoom
Close WindowZoom
Alternate View

MSRP: 942.00
Savings: $180.00

Your Price: $762.00
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
The P-9060DH CU is a 2-channel power amplifier (60W x 2) provides 70V line output. It can be used not only as 9000 series power amplifier but also as standalone amplifier, thus covering wide range of  ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The P-9060DH CU is a 2-channel power amplifier (60W x 2) provides 70V line output. It can be used not only as 9000 series power amplifier but also as standalone amplifier, thus covering wide range of applications.

  • 2-channel power amplifiers with 70.7V outputs
  • Flexible output power allowing 50% of one amplifier channel to be allocated to the second amplifier channel
  • Channel 1 and 2 inputs balanced (H=Hot, C=Cold and E=Shield) with selectable input sensitivity 0dB or -20dB
  • Channel 1 input to ALL selectable switch
  • Volume control security cover knobs included (quantity: 2 YA-920)
  • 2RU rack mounting hardware included
  • Front panel LED indicators for protect, peak, signal and power

Specifications

Specifications

Impedance10000 ohm
Maximum Frequency Response (Bandwidth)20.0000 kHz
Maximum Frequency Response (Bandwidth)20000 Hz
Minimum Frequency Response (Bandwidth)0.0200 kHz
Minimum Frequency Response (Bandwidth)20 Hz
Number of Watts Per Channel60 Watt
Operating Temperature (Maximum)104.0000 F
Operating Temperature (Maximum)40 C
Operating Temperature (Minimum)-10 C
Operating Temperature (Minimum)14.0000 F
Power Handling60 Watt
Signal to Noise Ratio105 dB
Total Harmonic Distortion + Noise (THD+N)0.008 %
AC Voltage120 Volts
Active Power225 Watt

Product Dimensions

Depth15.9843 in
Height4.2362 in
Product Weight18.0779 lbs
Width16.5354 in
