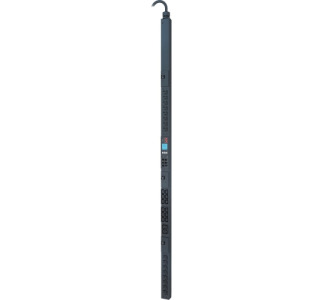

APC Metered Rack PDU

CAMCOR ITEM NO. 598806133 | MFG. PART NO. AP8870

Product Highlights
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and ... More

Is This Item Right For Me? - Ask Our Experts

California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Overview |Specifications |Customers Also Viewed |Reviews

Product Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

General Information
Manufacturer	American Power Conversion Corp
Brand Name	APC
Product Type	PDU
Technical Information
Input Receptacles	NEMA L14-30P
Output Receptacles	16 x NEMA 5-20R 2 x IEC 60320 C19 12 x IEC 60320 C13
Protection Type	Overload Protection Circuit Protection
Power Description
Input Voltage	120 V AC 230 V AC
Output Voltage	120 V AC
Power Rating	5.76 kVA
Input Current	30 A
Circuit Breaker	Yes
Management
Management	Web SNMP Telnet
Physical Characteristics
Color	Black
Form Factor	Horizontal Rackmount Vertical Rackmount Toolless-mount
Rack Height	0U
Number of Cord/Cable	1
Cord Length	10 ft
Height	70.5"
Width	2.2"
Depth	1.7"
Weight (Approximate)	14.04 lb
Miscellaneous
Package Contents	Metered Rack PDU Installation Guide Rack Mounting Brackets Safety Guide Serial Configuration Cable
Certifications & Standards	cUL Listed FCC Part 15 Class A ICES-003 UL 60950-1 UL Listed
Green Compliant	Yes
Green Compliance Certificate/Authority	REACH RoHS
Warranty
Limited Warranty	2 Year
