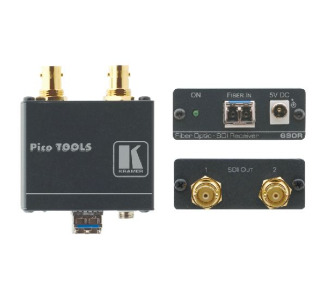

2-Channel 3G HD-SDI Fiber Optic Receiver

Print 2-Channel 3G HD-SDI Fiber Optic Receiver pageRequest Bulk Pricing CAMCOR ITEM NO. 384051635 | MFG. PART NO. 690R
2-Channel 3G HD-SDI Fiber Optic Receiver
2-Channel 3G HD-SDI Fiber Optic Receiver
Zoom
Close WindowZoom
Alternate View

MSRP: 1415.00
Savings: $283.00

Your Price: $1132.00
Quantity

Usually ships in 1-3 business days
Free ShippingFREE
SHIPPING (?)

This item has Free Shipping!

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
This is a high-performance fiber optic receiver for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

This is a high-performance fiber optic receiver for SDI video signals up to 3G HD-SDI. The 690T converts two 3G HD-SDI signals to single-mode fiber optic and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS-88FO.

  • Max. Data Rate - 3Gbps
  • Inputs - 2 single-mode fiber optic on LC connectors
  • Outputs - 2 SDI on BNC connectors
  • HDTV Compatible
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M)
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances on the coax cable, 200m (HD-SDI) & 100m (3G HD-SDI)
  • System Range - Up to 10km (6.2mi)
  • Compact Kramer TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter

Back to Top

Specifications

Specifications

Operating Distance (Singlemode)1000000.0000 cm
Operating Distance (Singlemode)32808.4 ft
Operating Temperature (Maximum)131.0000 F
Operating Temperature (Maximum)55 C
Operating Temperature (Minimum)0 C
Operating Temperature (Minimum)32.0000 F
Storage Temperature-45 to +72 °C
DC Voltage5 Volts

Product Dimensions

Depth2.0 in
Height0.9 in
Product Weight0.31 lbs
Width2.4 in
