25.5" Deep, 14RU Mobile Equipment Rack

Product Description

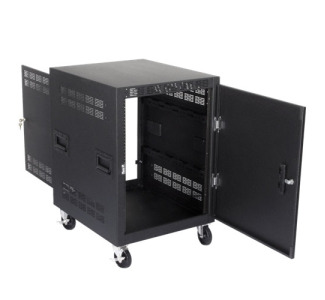

The RX14-25SFD mobile cabinet is ruggedly constructed of 16-ga. CRS and includes heavy-duty casters. Equipped with a front pair of 11-ga., CRS adjustable mounting rails tapped 10–32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing. Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable. Cabinet is 25 1/2" deep and has a vertical panel space height of 24-5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience. Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1-1/2" x 3") in the rear base flange.

• 16-ga. CRS Frame Manufactured to E.I.A. Standards
• Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
• Includes 1 Pair Adjustable, 11-ga., Front-to-Rear Mounting Rails
• Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
• Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
• Removable Front and Rear Doors (Right or Left-Hand Hinging) are Identically Keyed for Security and Convenience
• RR14 optional rear mounting rails available
• Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
• Standard Rack Includes Base, Top Panel, Side Panels, Casters, Front and Rear Doors
• Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
• Welded Frame for Long-Lasting Durability
