4K Auto-Switcher/Scaler Receiver over Long-Reach HDBaseT

Product Description

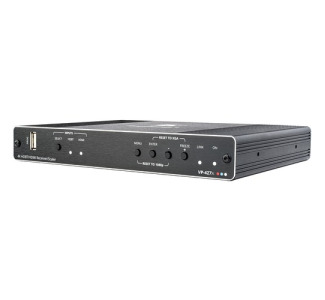

VP-427X is a high-performance auto-switcher/scaler receiver for 4K HDMI™ over long-reach HDBaseT and a local HDMI input. VP-427X receives the HDBaseT signal from a compatible transmitter, converts it to HDMI and up- or down-scales the picture to any resolution up to 4K at 60HZ (4:4:4) set by the user or automatically matching the resolution of the HDMI monitor. VP-427X enables extending video signals to up to 40m (130ft) over CAT copper cables at up to 4K at 60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

• HDMI Signal Extension - HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
• Audio De-embedding - Output the HDMI audio to a balanced stereo output.
• Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission and device control.
• Includes relay outputs and easy connection to occupancy sensors and contact closure switches.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation.
• ProcAmp Control - Contrast, brightness, color, etc.
• Freeze button.
• Convenient Unit Control and Configuration Options - Local control via front panel source switching buttons and OSD menu. Distance control via RS-232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
• Easy, Cost-effective Maintenance - Local firmware upgrade via USB connector.
• Easy and Elegant Installation - Compact MegaTOOLS™ fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 2 units in a 1U rack space with the recommended rack adapter.
• Application:
• Classrooms and lecture halls
• Meeting rooms
• Training facilities
• Collaborative classrooms
• Any space where BYOD support is required
