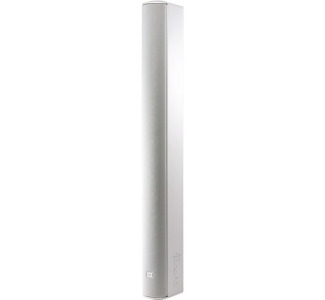

CBT 100LA-LS-WH - 2" Line Array Column Loudspeaker, White

Print CBT 100LA-LS-WH - 2" Line Array Column Loudspeaker, White pageRequest Bulk Pricing CAMCOR ITEM NO. 319900914 | MFG. PART NO. CBT100LA-LS-WH
No Image Available for CBT 100LA-LS-WH - 2" Line Array Column Loudspeaker, White

MSRP: 1279.49
Savings: $254.49

Your Price: $1025.00
Quantity

Product Highlights
The CBT 100LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The CBT 100LA-LS, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

  • Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
  • EN54-24 Compliant (when installed with included MTC-PC2 panel cover)
  • Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for long-throw applications
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
  • Dynamic SonicGuard™ overload protection
  • Swivel (pan)/tilt wall bracket included
  • Built-in 70V/100V transformer, plus 8 ohm direct capability

Specifications

Specifications

Impedance8 ohm
100V Taps120, 60, 30 Watt
Sensitivity (Low Frequency)93 dB
Speaker Diameter (Driver)50.8000 mm
70V Taps15 Watt
Minimum Frequency Response (Bandwidth)120 Hz
Minimum Frequency Response (Bandwidth)0.1200 kHz
Maximum Frequency Response (Bandwidth)20000.0000 Hz
Maximum Frequency Response (Bandwidth)20 kHz
Power Handling325 Watt
Speaker Diameter (Driver)2 in
Sensitivity (High Frequency)96 dB
Sensitivity (Mid Frequency)90 dB
Peak Power1300 Watt

Product Dimensions

Depth6 in
Depth152.3999 mm
Product Weight7.2 kg
Product Weight15.8733 lbs
Height39.4 in
Width3.8 in
Height1000.7595 mm
Width96.5199 mm
