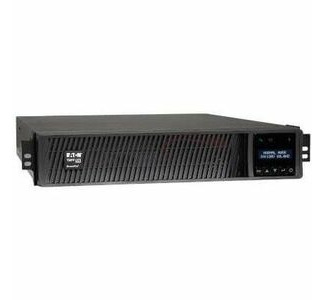

Eaton Tripp Lite Series UPS Smart 1440VA 1440W Rackmount AVR 120V LCD USB DB9 SNMP Extended Run 2URM
CAMCOR ITEM NO. 323907545 | MFG. PART NO. SMART1500RMXL2U
Product Highlights
1.44kVA/1.44kW/120V Battery Backup for Distributed IT, Telecom or Enterprise DeploymentsThis rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against ... More
Is This Item Right For Me? - Ask Our Experts
California Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
1.44kVA/1.44kW/120V Battery Backup for Distributed IT, Telecom or Enterprise Deployments This rack-mount line-interactive UPS system provides reliable battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage your valuable IT equipment or destroy data. The SMART1500RMXL2U is ideal power management for high-end in-rack networking equipment, including servers, VoIP phones, data storage and PoE switches. Unity power factor ensures the most watts possible at each power rating, so you can connect more equipment.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Switchover from line to battery power happens within milliseconds to maintain continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP48VRM2U, sold separately).
Optional LX Platform Network Management Card Allows Remote Access 24/7 The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.
NEMA 5-15R Outlets Protect Your Connected Components Eight managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two programmable load banks that let you shed non-critical loads to extend runtime for critical loads. Front and rear cooling fans help protect equipment from overheating.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts. The SMART1500RMXL2U maintains regulated 120V nominal output during brownouts and overvoltages from 80V to 151V while keeping the battery fully charged and ready to take over in case of power failure.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
ENERGY STAR-Certified to Help You Save Money and Protect the Environment By meeting strict U.S. Department of Energy and U.S. Environmental Protection Agency requirements, this ENERGY STAR 2.0 UPS system provides high operational efficiency to signal a reduction in BTU emissions, save on utility and cooling costs and help protect the environment.
Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage
Network Device
High-end System
Power Description
Load Capacity
1440 VA/1440 W
Input Voltage
120 V AC
Output Voltage
100 V AC
110 V AC
120 V AC
125 V AC
Input Frequency
60 Hz
Output Frequency
60 Hz
Waveform Type
Sine Wave
Output Power Factor
1
Management
Network Management
SNMP Manageable
Alarm
UPS StartUp
Remote Shutdown
Overload
Low Battery
Power Failure
Controls/Indicators
Status Indicators
UPS status (Solid Green)
Battery Mode (Solid Orange)
Battery Low Warning (Flashing Orange)
Fault/Alarm (Solid Red)
Interfaces/Ports
USB
Yes
EPO Port
Yes
Total Number of Expansion Slots
1
Battery Information
DC System Voltage
48 V DC
Battery Characteristics
Valve-regulated
Battery Chemistry
Lead Acid
Backup/Run Time (Full Load)
5.10 Minute
Backup/Run Time (Half Load)
15.10 Minute
Battery Life
6 Year
Typical Battery Recharge Time
4 Hour
Hot Swappable
Yes
Replaceable Battery
Yes
Environmental Conditions
Maximum Operating Temperature
104°F (40°C)
Storage Temperature
5°F (-15°C) - 122°F (50°C)
Sound Emission (A-Weighted)
40 dB(A)
Physical Characteristics
Height
3.5"
Width
17.2"
Depth
17.6"
Rack Height
2U
Form Factor
Rack/Tower
Weight (Approximate)
50.71 lb
Miscellaneous
Package Contents
SMART1500RMXL2U UPS System
PowerAlert software with USB and DB9 cables
Mounting hardware for 4 post rackmount installation
Cable for Emergency Power Off interface
Instruction manual with warranty information
Additional Information
SMART1500RMXL2U line interactive UPS offers voltage regulation, battery support and network-grade AC surge suppression
Uses only 2 rack spaces (2U) in a 19 inch rack enclosure with an installed depth of only 15 inches
Includes mounting accessories for 4 post rackmount systems, 2 post rackmount compatible with optional 2POSTRMKIT accessory, tower compatible with optional 2-9USTAND accessory
1500VA / 940 watt power handling capability; 30 minutes half load runtime / 12 minutes full load runtime
Extended runtime available with BP48V24-2U (limit 1) or BP48V60RT3U (multi-pack compatible) external battery packs
Automatic Voltage Regulation (AVR) circuits maintain usable 120V nominal without using battery power during brownouts as low as 75V and overvoltages as high as 147V
Includes a total of 8 NEMA5-15R outlets, 1 pair of which can be individually powered on and off via software interface to selectively reboot remote equipment or automatically shed less significant loads to extend battery runtime for more critical equipment
Supports 120 volt / 60 Hz applications in USA, Canada, Mexico and more; common 15 amp straight blade input plug compatible with standard NEMA 5-15R wall sockets
Includes 1 USB and 1 DB9 communication ports for remote monitoring of UPS and site power status
Communications ports support messaging of UPS and line power status, including on-battery, low-battery, power-restored, AC line voltage, DC battery voltage and battery capacity; supports timed inverter shutoff after unattended shutdown, activate self-test and 10 second reboot of connected equipment
PowerAlert UPS monitoring and unattended shutdown software with complete USB and DB9 cabling included
Supports SNMP in large network applications with optional SNMPWEBCARD internal adapter
Supports Tripp Lite's WatchDog software application to automatically restore unresponsive programs by restarting them and rebooting completely locked computers by automatically switching UPS power off and back on again
5 front panel LEDs and multi-function audible alarms offer status of line power, battery power, battery low/replace, voltage regulation and load level
Built-in cooling fan maintains optimal internal UPS temperature
Hot-swappable / user replaceable batteries allow on-site battery replacement while the UPS is fully installed
UPS battery set ships fully assembled and ready for installation, no time consuming battery connections required
Cold start capability enables UPS turn-on in battery mode during blackout conditions
UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed
$250,000 Ultimate Lifetime Insurance (USA and Canada only / 2 year manufacturers product warranty
Certifications & Standards
UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin
China
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 year with registration. Note: Registration is required for 3-year warranty.
