In-Row Precision Cooling System - 12 kW (41,000 BTU/hr), 208-240V, 42U, 300mm

Product Description

Slim Air Conditioning System Saves Space While Delivering Primary Precision Cooling /gt;This SmartRackreg; in-row precision air conditioning system is the ideal cooling option for your small-to-medium data center, IT room or other edge location. Typical CRAC/CRHC units are too large for these locations, but the SRCOOLDXRW12 cools your mission-critical equipment while occupying very little floor space, supporting up to 12.8kW (43,686 BTU/hr) of heat load per unit. The cabinet is just 300 millimeters wide, making it easy to position optimally within a row for precision close-coupled cooling. It requires the same front and rear clearance as a standard rack enclosure. Uses DX Technology to Deliver Cool Air to Loads /gt;This direct expansion (DX) cooling system pulls unconditioned air through the rear of the unit, cools it with condensed refrigerant and delivers it to equipment loads with up to 43,686 BTU/hour and more than 1,475 CFM airflow. EC fans and a variable speed compressor provide variable airflow and constant temperature based on room conditions. High Cooling Efficiency Saves You Money /gt;Inverter compressor and EC fan technology automatically regulate cooling output to match heat load and conserve energy during off-peak hours, lowering your overall energy costs and lengthening the lifespan of the equipment being cooled. The close-coupled design captures heat at the source to improve energy efficiency by 25% over traditional perimeter CRACs. In addition, the SRCOOLDXRW12 is ideally sized for your small-to-medium data center at virtually any density, saving you the cost of a raised floor or an overbuilt/overprovisioned CRAC unit. It uses eco-friendly R410A refrigerant, reflecting your commitment to environmental responsibility. Easy to Operate with the Color Touchscreen /gt;You have total control over the SRCOOLDXRW12 using the front-panel color touchscreen interface, which lets you monitor and access system configuration and status information. A built-in controller detects and manages data center temperatures, automatically adjusts cooling levels and supports various control modes. Intelligent temperature control and variable speed technology allow precise airflow and temperature adjustment to match specific load requirements closely without wasting energy on overcooling.

• Cools mission-critical equipment with up to 12.8 kW (43,686 BTU/hr) of high-precision in-row cooling power
• Slim 300 mm profile allows maximum cooling while taking up little space
• Close-coupled design improves energy efficiency by 25% over traditional CRACs
• User-friendly color touchscreen allows complete access to data and status information
• Configurable side and/or front airflow discharge and maintenance mode capability

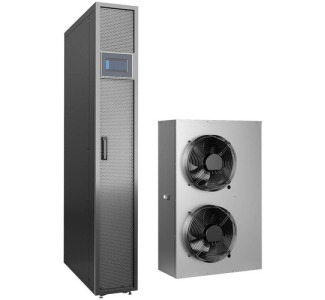

• Package Includes:
• Indoor in-row air conditioning unit
• Outdoor condenser
• Side discharge panels / adapters
• Hardware kits
• Owners manual
