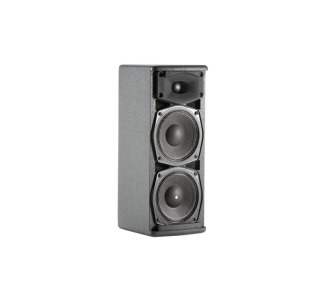

JBL Professional AC25 2-way Ceiling Mountable, Wall Mountable Speaker - 225 W RMS - Black

Print JBL Professional AC25 2-way Ceiling Mountable, Wall Mountable Speaker - 225 W RMS - Black pageRequest Bulk Pricing CAMCOR ITEM NO. 319900420 | MFG. PART NO. AC25
JBL Professional AC25 2-way Ceiling Mountable, Wall Mountable Speaker - 225 W RMS - Black
JBL Professional AC25 2-way Ceiling Mountable, Wall Mountable Speaker - 225 W RMS - Black
Zoom
Close WindowZoom
Alternate View

We will gladly send you a quote for this item. Please click the link below to fill out the form and receive the quote via FAX or e-mail.

Get Quote

Become a registered user and view prices on all products

Usually ships in 1-3 business days
Free ShippingQualifies for
FREE SHIPPING (?)

This item Qualifies towards Free Shipping!

Items marked with this Freight Saver symbol have FREE shipping (via UPS Ground Service within the Continental US) when $ 79.00 or more of designated Freight Saver items are purchased on the same internet order.

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
The AC25 is an ultra-compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

The AC25 is an ultra-compact fullrange loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" dome tweeter integrated into a newly designed 90° x 90° waveguide providing even coverage throughout the intended usage area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC25 utilizes dual 5.25" Symmetrical Field Geometry (SFG™) LF Transducers each with a copper-clad aluminum edge wound 1.5" voice coil and a copper-capped pole piece that improves performance by reducing voice coil inductance and distortion. In addition Filtered Array Technology (FAT™) is utilized to independently control the dual woofers for magnitude and phase response resulting in smoother power response and constant coverage.



Specifications

General Information
ManufacturerHarman International Industries, Inc
Brand NameJBL Professional
Product ModelAC25
Product TypeSpeaker
Technical Information
Crossover Type2-way
RMS Output Power225 W
PMPO Output Power900 W
Driver Type
  • 1.50" Tweeter
  • 5.25" Woofer
  • Minimum Frequency Response90 Hz
    Maximum Frequency Response18 kHz
    Impedance16 Ohm
    Crossover Frequency3.30 kHz
    Sound Pressure Level115 dB
    Sensitivity91 dB
    Physical Characteristics
    ColorBlack
    Material
  • Plywood
  • Perforated-steel
  • Foam
  • Form Factor
  • Ceiling Mountable
  • Wall Mountable
  • Height14.9"
    Width5.9"
    Depth7"
    Weight (Approximate)16.53 lb
    Miscellaneous
    Certifications & Standards
    • Mil-Std 810
    • IPx3 Per IEC529
    Warranty
    Limited Warranty5 Year
