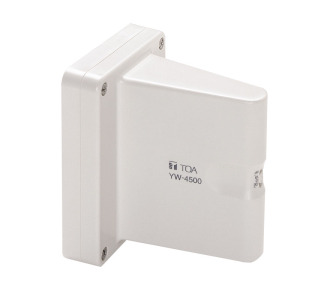

Wireless Remote Di-pole Antenna Kit

Print Wireless Remote Di-pole Antenna Kit pageRequest Bulk Pricing CAMCOR ITEM NO. 685910877 | MFG. PART NO. YW-4500
Wireless Remote Di-pole Antenna Kit
Wireless Remote Di-pole Antenna Kit
Zoom
Close WindowZoom
Alternate View
Quantity

Click for your price

Close Window

Usually ships in 1-3 business days
Free ShippingQualifies for
FREE SHIPPING (?)

This item Qualifies towards Free Shipping!

Items marked with this Freight Saver symbol have FREE shipping (via UPS Ground Service within the Continental US) when $ 79.00 or more of designated Freight Saver items are purchased on the same internet order.

Camcor, Inc. uses parcel carriers including UPS and FedEx. UPS will NOT deliver to PO Boxes (can only be shipped via US Postal Service). For residential and business orders shipped by motor freight (truck) common carrier, normal delivery is curbside or loading dock (Dock to Dock Delivery) and NOT inside the home or business.

For any special request such as "in home", "inside building", "up elevators", "up stairs", "set up", "lift gate truck", the freight company will assess additional charges. Customers are responsible for any such charges.

Product Highlights
Remote di-pole antenna kit is a powered, fixed mount indoor di-pole antenna for use with the WT-4800 receiver, WD-4800 antenna distribution system or any UHF wireless microphone system operating on ... More

Is This Item Right For Me? - Ask Our Experts
Phone 800.868.2462

WarningCalifornia Residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Product Description

Remote di-pole antenna kit is a powered, fixed mount indoor di-pole antenna for use with the WT-4800 receiver, WD-4800 antenna distribution system or any UHF wireless microphone system operating on the 680 to 880MHz UHF band. The antenna greatly improves reception at long range and in areas with high residual RF traffic. It is an ideal solution for stage performances and presentations where multiple receivers will be used simultaneously.

  • Compatible with frequency bands E01 and F01 only
  • Fixed-mount dipole antenna for permanent installation
  • Use with WT-4820, WT-5800, WT-5805 or WD-4800
  • Easy to install

Back to Top

Specifications

Specifications

Operating Temperature (Maximum)122.0000 F
Operating Temperature (Maximum)50 C
Operating Temperature (Minimum)-10 C
Operating Temperature (Minimum)14.0000 F
Antenna Gain>8 dB
Attenuator0/10/20 dB
Current Consumption<24 mA
Output Impedance75 ohms
Power Source7 to 12 VDC
UHF Receiving Frequency680 to 880 MHz

Product Dimensions

Product Weight0.661 lbs
